Annual Capacity
50,000 MT
Advanced Manufacturing Infrastructure
Manufacturing Excellence
Steelbuild Infra Projects operates integrated manufacturing facilities equipped with advanced machinery, automated production lines, precision fabrication and stringent quality control for premium Pre-Engineered Building solutions.
50,000 MT Annual Capacity
3 Integrated Manufacturing Units
ISO 9001:2015 Certified Systems
Pan-India Project Delivery
Steelbuild Infra Projects
Engineering Excellence
Precision infrastructure engineered for strength, performance and reliable delivery.
Watch Our Corporate Film
Experience Steelbuild Through Manufacturing Excellence
Explore our company, manufacturing facilities, engineering capabilities and project execution through our corporate film.
Plant & Machinery
Precision-Engineered Manufacturing Infrastructure
High-capacity, precision-engineered equipment supporting world-class manufacturing standards for Pre-Engineered Buildings and structural steel systems.
Quality System
ISO 9001:2015
Quality Assurance
Strict Inspection
Production
High Capacity
3 Nos.CNC Multi-Torch Plasma Cutting System
Cutting and machining flame-cutting system.
Machine Specifications
- A pressurized mixture of oxygen and combustible gas, such as propane, heats the steel.
- Heat is focused on a very narrow band, melting the steel at approximately 1500°C.
- The process achieves the required cuts quickly and efficiently.
- Rapid heating and cooling cycles may introduce residual stresses and distortion.
- Daily processing capacity: 20 MT.
- System configuration: MaxPro 200 Hypertherm.

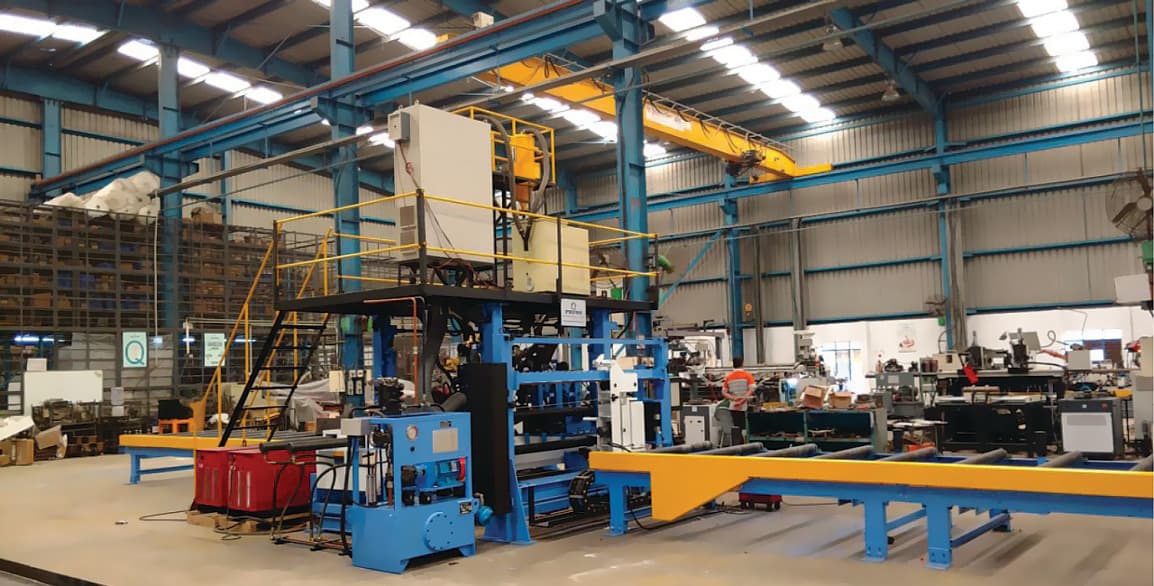

3 Nos.Heavy Duty H-Beam Welding Line
High-capacity welding line for precision fabrication of primary structural steel members.
Machine Specifications
- Web height: 200–1500 mm.
- Workpiece length: 2.5–13 m.
- Flange thickness: 5–25 mm.
- Welding wire diameter: 1.6 mm.
- Voltage: 415 V / 50–60 Hz / 3 Phase.
- Web taper angle: 15°.
- Flange width: 200–500 mm.
- Welding type: Single-arc twin wire or single wire.
- Web thickness: 5–20 mm.
- Welding speed: 300–1000 mm/min with stepless speed adjustment.

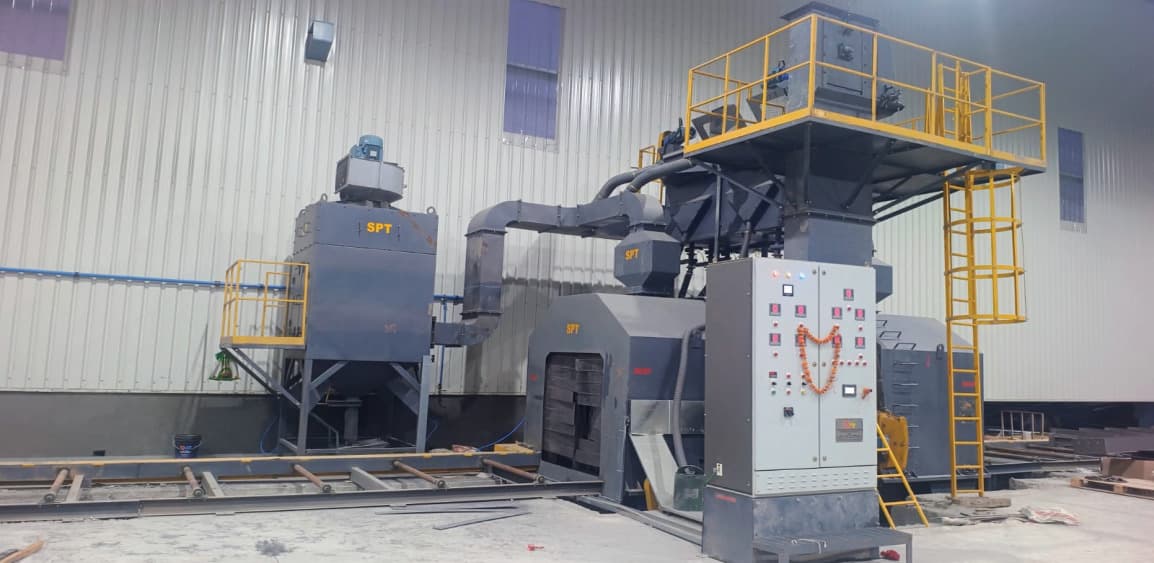

8 Blast Wheels8-Wheel Automatic Shot Blasting Machine
Automatic surface-treatment equipment for cleaning and preparing structural steel components.
Machine Specifications
- Machine opening size: 1500 mm height × 1500 mm width.
- Effective working envelope: 1400 mm height × 1400 mm width.
- Automatic roller conveyor system.
- 12-metre inlet roller conveyor.
- 12-metre outlet roller conveyor.
- 8 high-efficiency blast wheels.
- Blast-wheel power: 11 kW each.

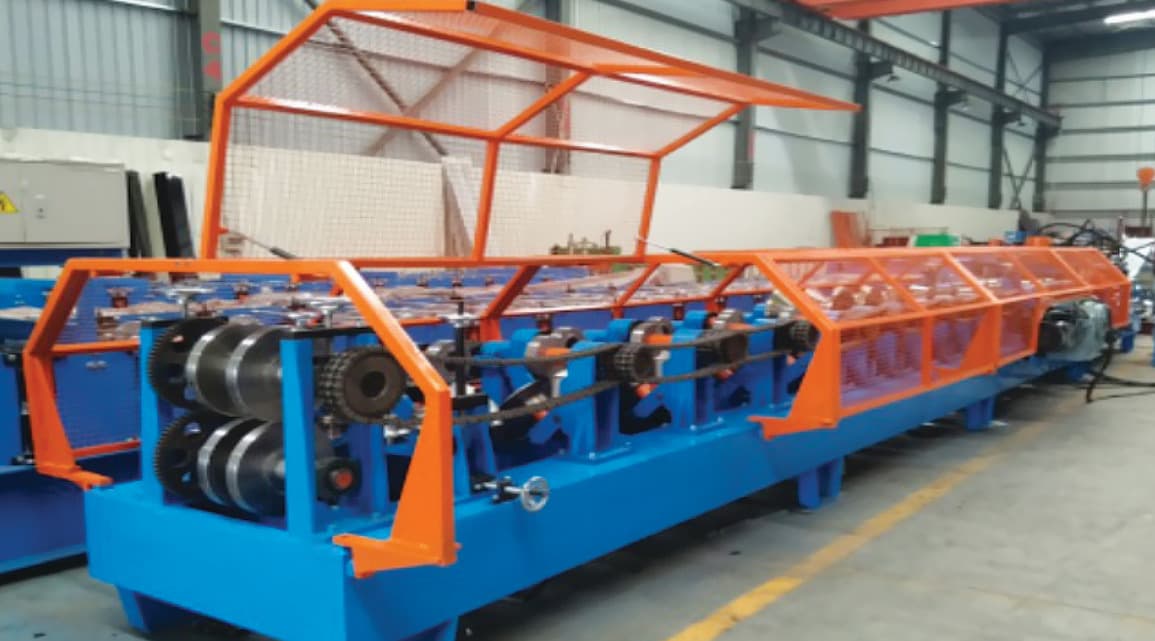

25 m/minQuick Interchange C & Z Punching Machine
Automated production system for C and Z secondary structural members.
Machine Specifications
- Integrated pre-levelling, pre-punching and pre-cutting devices.
- Material thickness range: 1.5–3.5 mm.
- Suitable for 345 MPa and UTS 550 MPa materials.
- Supported Z sections: Z100–Z350.
- Supported C sections: C100–C350.
- Production speed: 25 m/min.
- 5 MT automatic decoiler.
- Pre-programmable punching with ±2 mm corner tolerance.

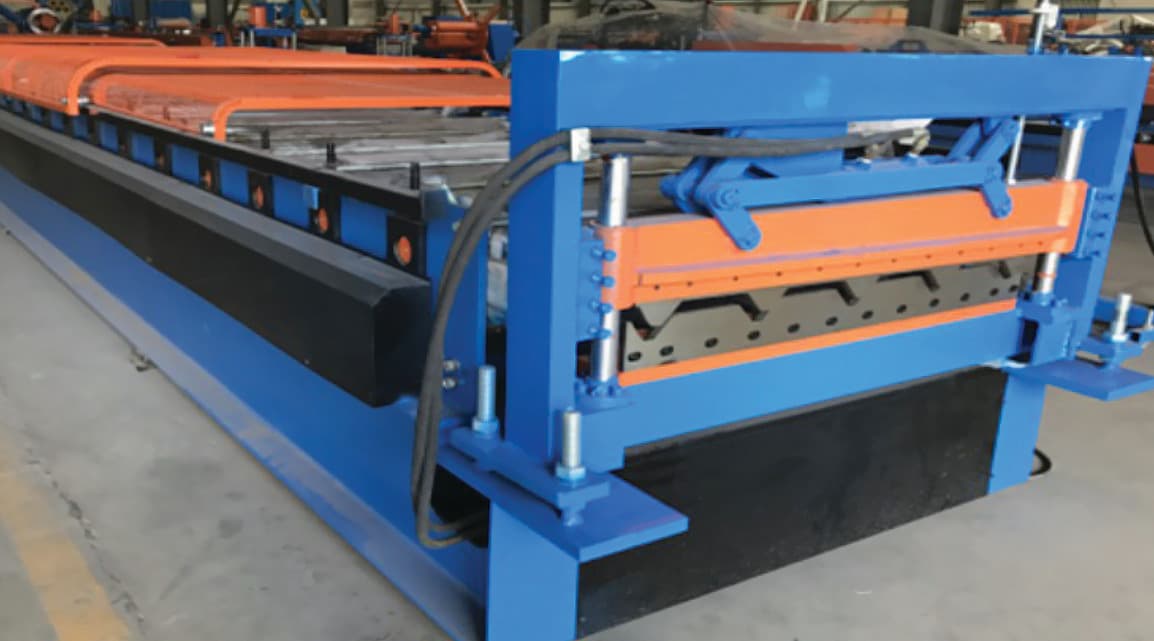

20 m/minHV Series Roll Forming Machine
High-speed roll-forming line for roofing, cladding and profile-sheet production.
Machine Specifications
- Raw material: Pre-painted galvalume steel sheet.
- Material standards: ASTM A526 / JIS G3302 SGCC or equivalent soft-grade material.
- Coil thickness range: 0.3–0.8 mm.
- Suitable for material strength up to 550 MPa.
- Effective profile width: 1225 mm.
- Maximum line speed: 20 m/min.
- Uncoiler load capacity: 6 MT.

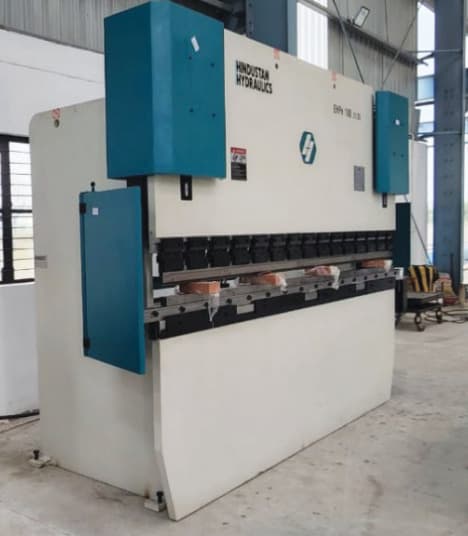

1500 KNHeavy Duty 3-Metre Press Brake
Heavy-duty hydraulic bending and shearing equipment for customized steel components.
Machine Specifications
- Pressing capacity: 1500 KN.
- Maximum working length: 3150 mm.
- Distance between frames: 3000 mm.
- Sections can be cut to the required length or width using hydraulic shears.
- Suitable for heavy sections and long steel plates.
- Specialized plate-shearing capability.
- Shearing knives are used for smaller plate sections.

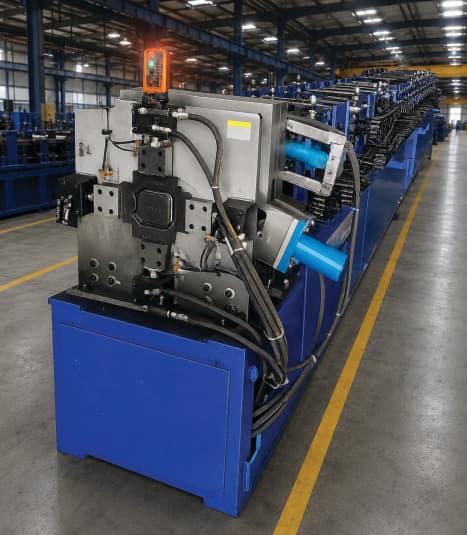

S-Type ProfileAutomatic Down Take Pipe Roll Forming Machine
Automatic roll-forming system for manufacturing rainwater downpipes and industrial downspouts.
Machine Specifications
- Manufactures S-Type down take pipes and downspouts.
- Processes pre-painted galvanized steel coils.
- Also supports galvanized steel coils.
- Profile type: S-Type down take pipe.
- Finished profile size: 137 mm × 174 mm.
Manufacturing Process
From Engineering to Reliable Project Dispatch
Every Steelbuild component moves through a structured manufacturing workflow focused on precision, quality, traceability and timely delivery.
Step 01
Engineering & Detailing
Structural requirements are converted into accurate engineering drawings, fabrication details and production-ready documentation.
Step 02
Material Preparation
Approved steel plates, coils and structural materials are inspected, identified and prepared for manufacturing.
Step 03
CNC Cutting
High-precision CNC plasma cutting systems process steel components according to approved engineering specifications.
Step 04
Fabrication & Welding
Primary framing members are assembled and welded using advanced H-beam welding lines and controlled production processes.
Step 05
Surface Preparation
Fabricated members undergo shot blasting and surface cleaning to achieve the required preparation and finish standards.
Step 06
Painting & Protection
Protective coatings and approved paint systems are applied to improve durability, corrosion resistance and service life.
Step 07
QA/QC Inspection
Dimensions, weld quality, surface finish and production compliance are verified through multi-stage quality inspection.

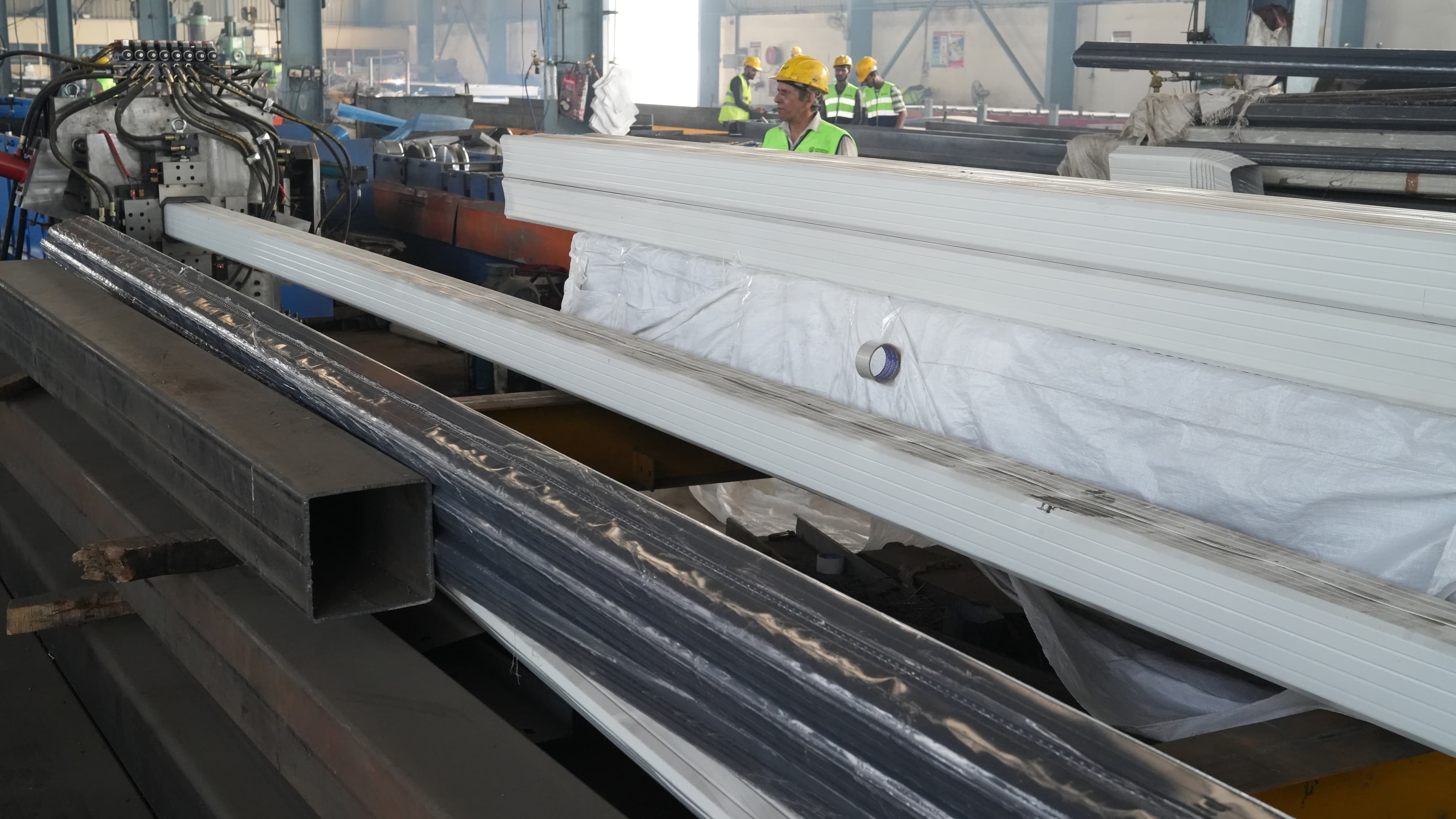

Step 08
Packing & Dispatch
Finished components are marked, packed and dispatched through an organized logistics system for reliable project delivery.
Quality at Every Stage
Controlled Manufacturing. Consistent Results.
Each manufacturing stage is reviewed through defined quality checks to maintain dimensional accuracy, welding quality, surface finish and delivery readiness.
01
Engineering-controlled manufacturing
02
Multi-stage quality inspection
03
Traceable production workflow
04
Organized packing and dispatch
Quality-Controlled ProductionOrganized PackingReliable Dispatch
Quality & Certifications
Manufacturing Backed by Controlled Quality Standards
Every Steelbuild component is manufactured, inspected, documented and prepared for dispatch through a structured quality assurance process focused on consistency, compliance and reliability.
ISO 9001:2015
Certified Quality Management System
Multi-Stage
Inspection Throughout Production
Strict QA/QC
Controlled Manufacturing Procedures
Certified Quality Systems
Quality Is Built Into Every Manufacturing Stage
Our quality systems support material verification, fabrication control, dimensional checks, welding inspection, surface preparation and final dispatch verification.
Approved material verification
Production-stage inspection
Dimensional and welding checks
Final dispatch documentation
01
Incoming Material Inspection
Steel plates, coils and structural materials are verified against approved specifications before entering production.
02

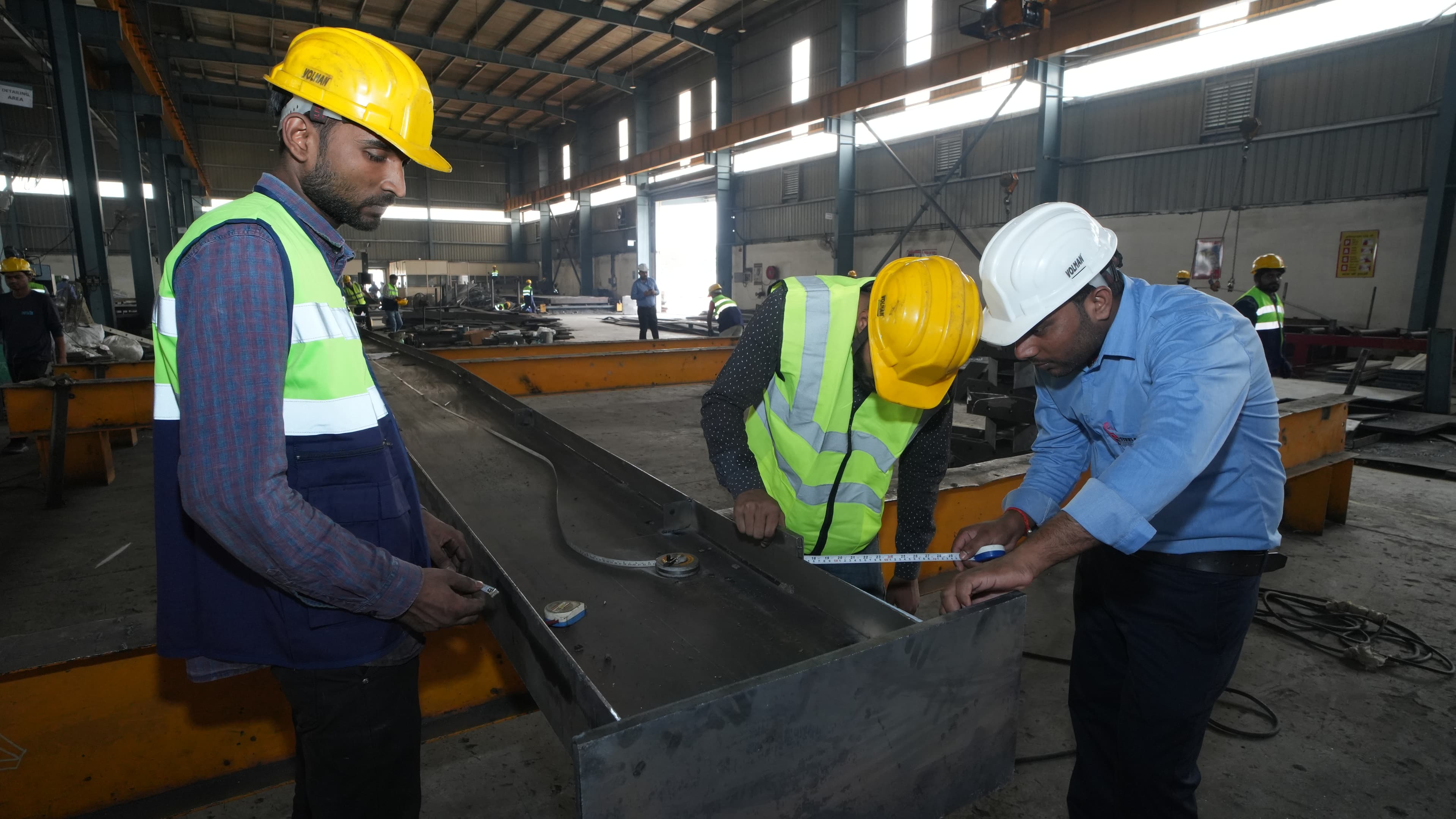

Dimensional Accuracy
Fabricated components are checked for dimensions, alignment, tolerances and production accuracy.
03
Welding Inspection
Weld quality, continuity and workmanship are reviewed through controlled inspection procedures.
04
Surface Preparation
Shot-blasted and prepared surfaces are inspected before applying approved protective coating systems.
05
Final Quality Audit
Finished structural members undergo final checks for fabrication quality, coating and project compliance.
06
Dispatch Verification
Marking, packing, documentation and dispatch readiness are verified before material leaves the facility.
Steelbuild Quality Commitment
Every structural member is manufactured, inspected and dispatched under controlled quality procedures.
Quality-Controlled Production
Standing Seam Technology

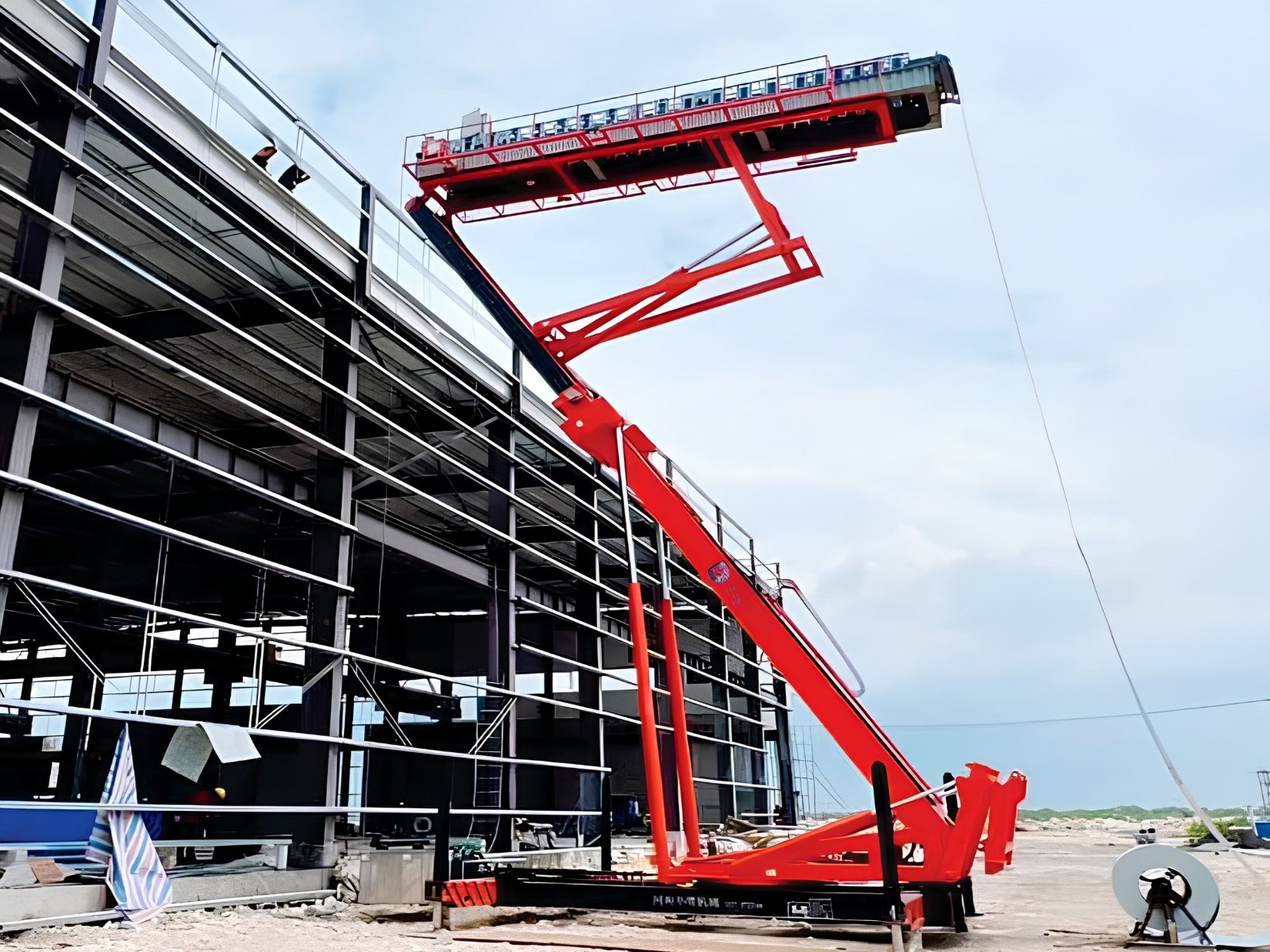

Standing Seam Roll Forming Machine
Advanced roll forming technology for manufacturing premium concealed-fastener standing seam roofing systems with outstanding weather resistance, structural performance and leak-proof protection.
360° Double Lock Standing SeamLeak-Proof Roofing SystemConcealed FasteningSuperior Weather Protection
Machine Specifications
Technical Details
Suitable MaterialPPGL (345 MPa)
Coil Width610 mm / 760 mm
Material Thickness0.50 – 0.70 mm
Roller StationsApprox. 12 Stations
Machine StructureWire-Electrode Cutting Frame
Roller MaterialASTM1045 Chrome Plated
Cutting MethodPre-Cut System
Machine BodyContainer Fixed
Seaming System360° Double Lock
Available Profiles
Standing Seam Roofing Profiles

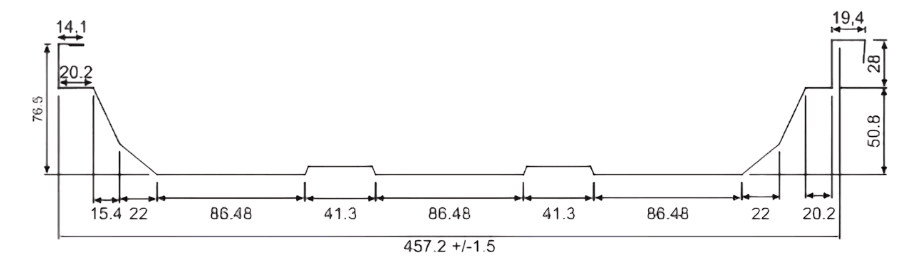

Coil Width 610 mm
Coil Width 760 mm
Need High-Performance Standing Seam Roofing?
Discuss your project with our engineering experts and discover premium standing seam roofing systems designed for superior durability and weather protection.
Request Standing Seam ConsultationRoofing & Cladding Systems
Engineered Building Envelope Solutions
High-performance roofing, cladding and deck sheet systems designed for strength, durability, weather protection and architectural excellence across industrial and commercial buildings.

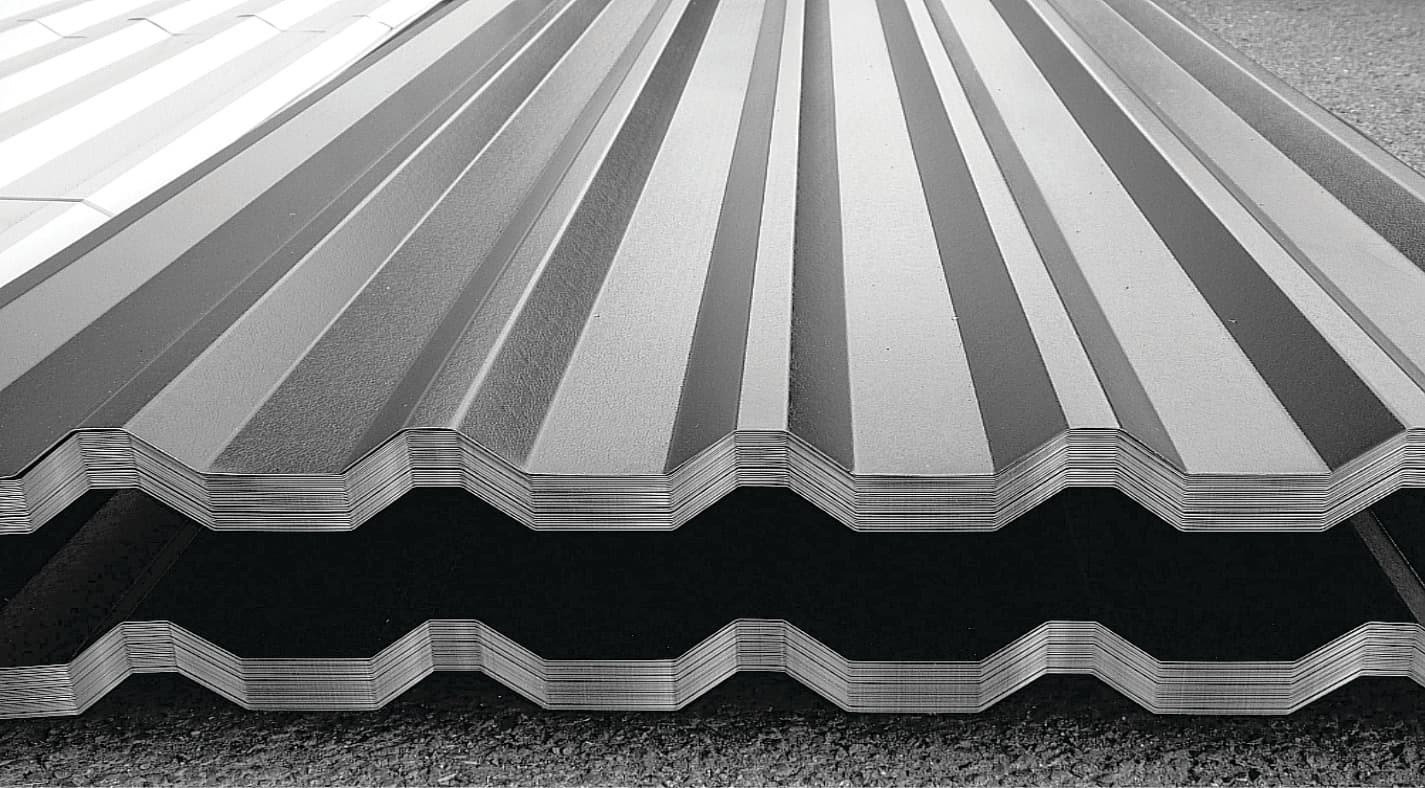

Roofing SystemSteelbuild Roofing Sheet
Steelbuild Roofing Sheets are strong, cost-effective profiles developed specifically for industrial roofing applications, offering reliable weather protection and long-term performance.
Key Advantages
- High structural strength
- Cost-effective roofing solution
- Excellent weather resistance
- Suitable for factories, warehouses and PEB structures
Built for Long-Term Performance

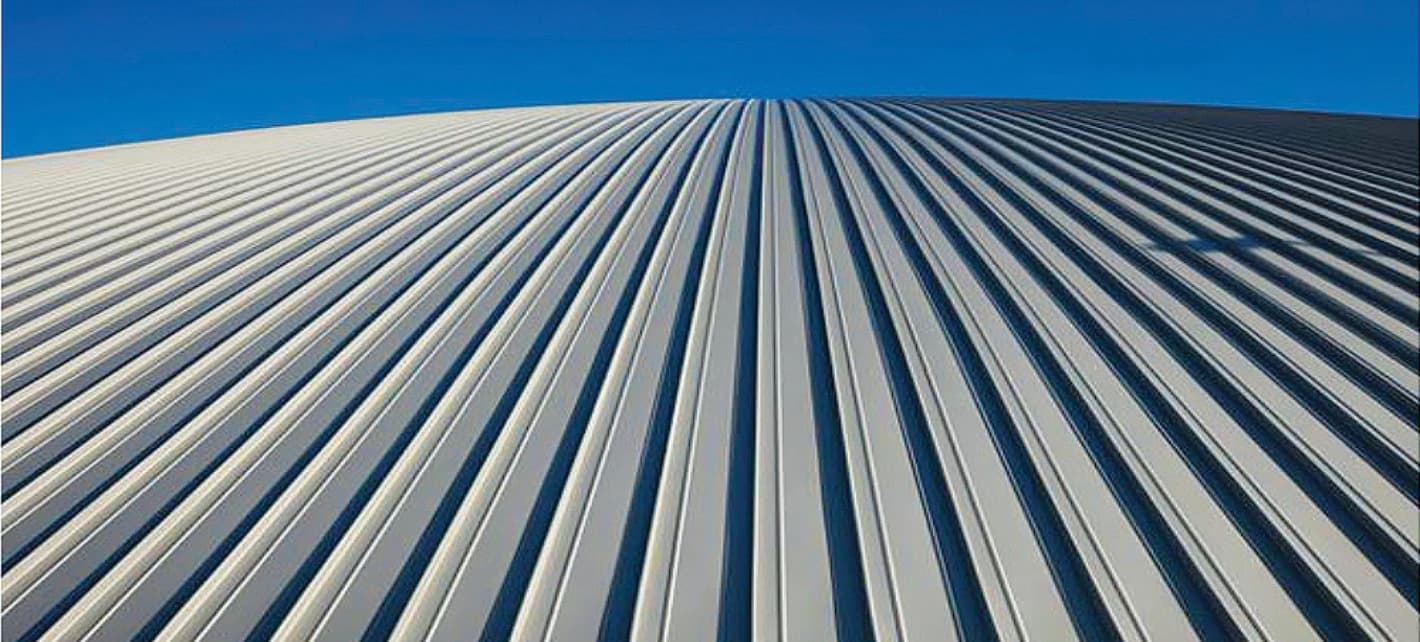

360° Double LockStanding Seam Roofing System
Our advanced standing seam system uses a concealed 360° double-lock fastening mechanism that reduces leakage risks at fasteners and side or end laps while providing all-weather protection.
Key Advantages
- Concealed fastening system
- 360° mechanically locked seam
- Reduced leakage risk
- Superior all-weather performance
Built for Long-Term Performance

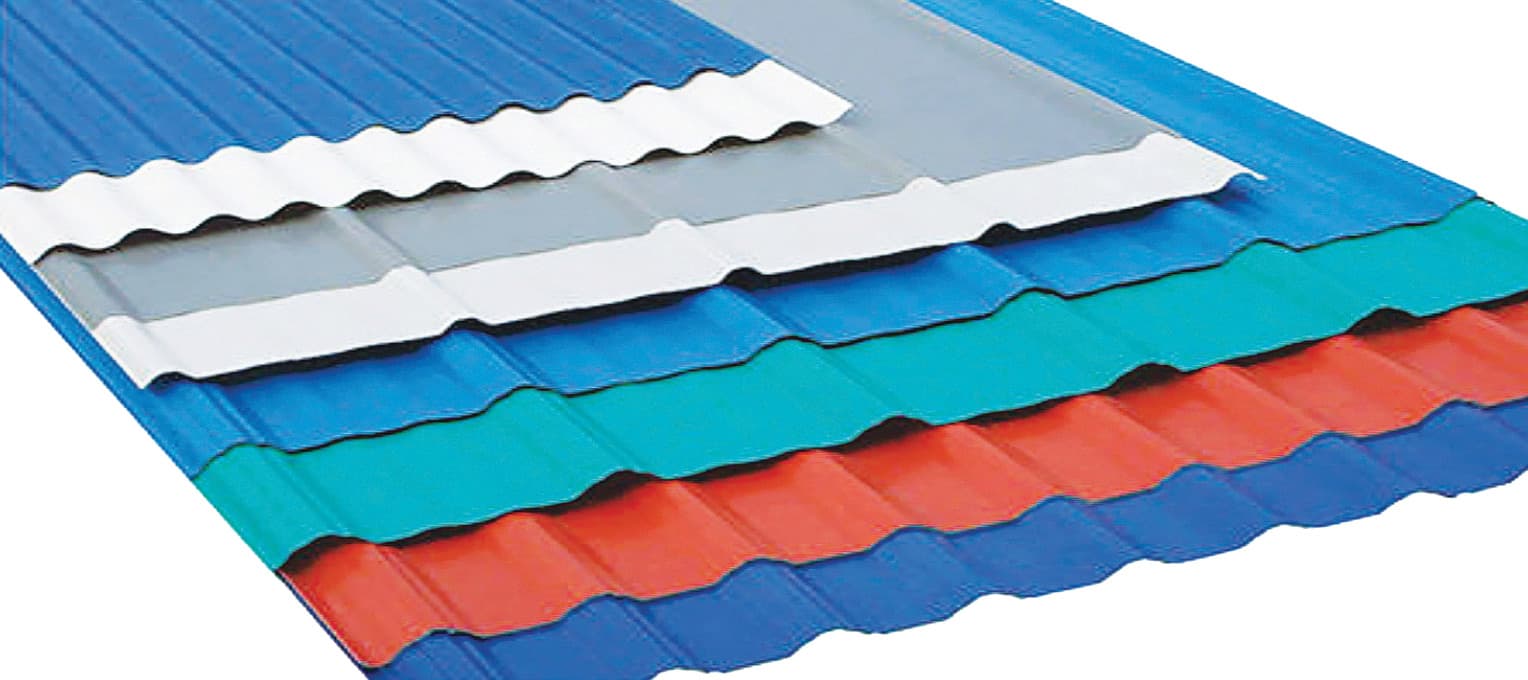

Wall CladdingSteelbuild Cladding Sheet
Steelbuild Cladding Sheets feature concealed fastening and sculptured valley profiles between major ribs, delivering both structural durability and a refined architectural appearance for external walls.
Key Advantages
- Concealed fastener design
- Premium architectural finish
- Durable external wall protection
- Strong and cost-effective profile
Built for Long-Term Performance

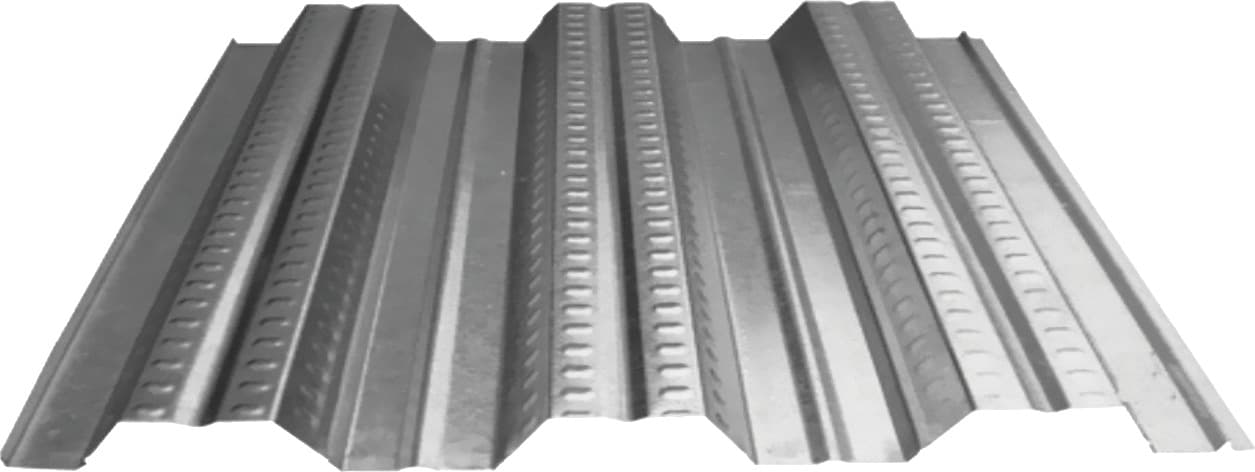

Composite FlooringSteelbuild Deck Sheet
Steelbuild Deck Sheets are used as permanent shuttering in multi-storey buildings, warehouses, offices, industrial facilities and automobile showrooms, supporting concrete and composite slab construction.
Key Advantages
- Permanent shuttering solution
- Supports composite slabs
- Faster floor construction
- Suitable for multi-storey and industrial buildings
Built for Long-Term Performance
Accessories & Insulation
Complete Roofing Support Systems
Steelbuild provides advanced roofing accessories and insulation systems designed to improve ventilation, daylighting, thermal performance, acoustic comfort and fire protection.
Roofing Accessories
Ventilation & Daylighting Systems
Integrated solutions that improve indoor airflow, reduce heat build-up and increase the use of natural daylight.

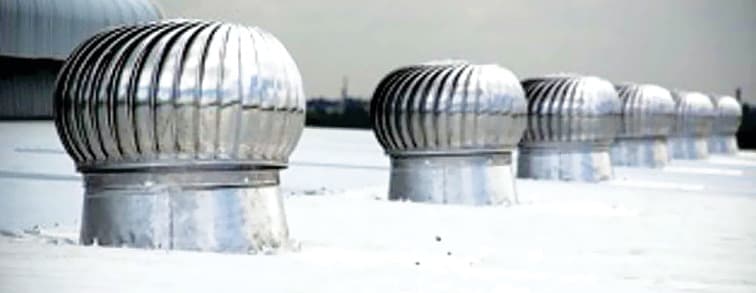

Steelbuild SystemTurbo Vents
Natural roof ventilation systems that exhaust hot air without electricity, helping reduce indoor heat accumulation and improve airflow inside industrial buildings.
Engineered for Performance

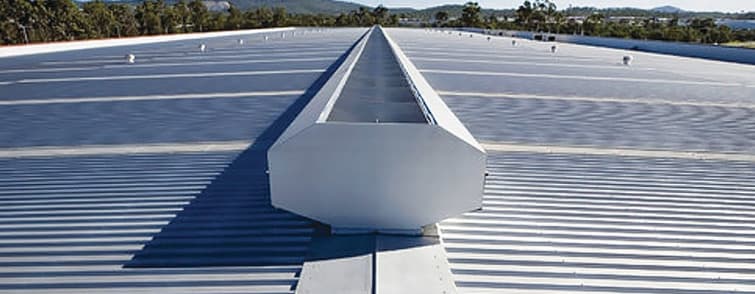

Steelbuild SystemRidge Ventilator
Continuous ridge ventilation systems designed to extract hot air efficiently and maintain balanced airflow throughout large-span factories and warehouses.
Engineered for Performance

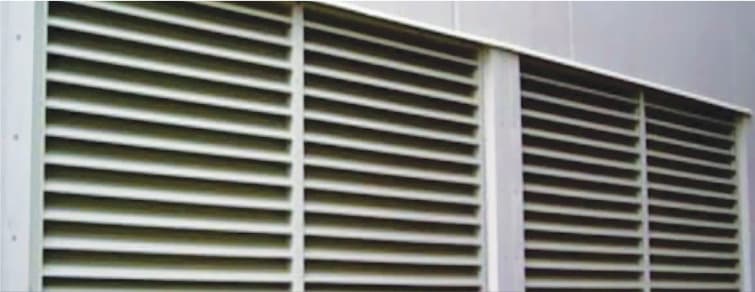

Steelbuild SystemLouvers
Engineered wall louvers that provide controlled ventilation while helping prevent rainwater, dust and external debris from entering the building.
Engineered for Performance

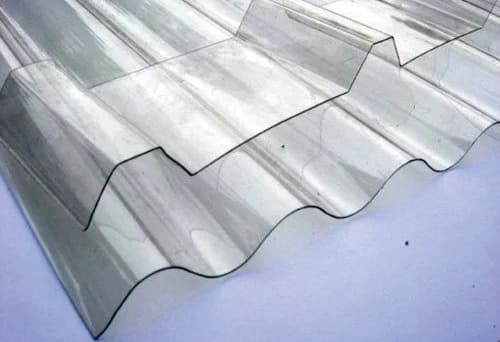

Steelbuild SystemPolycarbonate Sheets
High-transparency daylight panels that provide natural illumination while offering excellent impact strength and reliable weather protection.
Engineered for Performance
Insulation Systems
Thermal, Acoustic & Fire Protection
High-performance insulation options for improved energy efficiency, acoustic comfort and building safety.

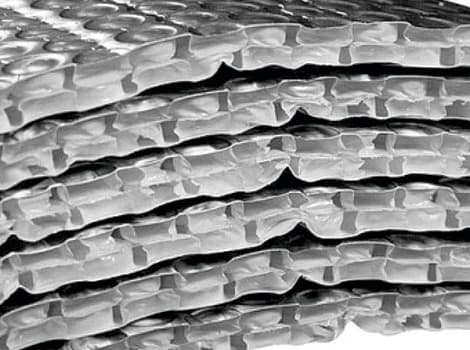

Steelbuild SystemAir Bubble Insulation
Reflective Air Bubble Insulation reflects up to 97% of radiant heat, helping maintain stable indoor temperatures and improve energy efficiency in hot and cold climates.
Engineered for Performance
Steelbuild SystemGlass Wool
Glass Wool is manufactured from fine glass fibres and provides excellent thermal insulation, acoustic performance and long-term energy efficiency.
Engineered for Performance
Steelbuild SystemRock Wool
Rock Wool provides high-performance thermal insulation, sound absorption and fire resistance for industrial and commercial building applications.
Engineered for Performance
Sheeting Accessories
Complete Roof Drainage & Protection Systems
Precision-engineered sheeting accessories that enhance roof performance, improve water management and provide long-lasting protection for industrial and commercial buildings.
Down Take Pipe
Steelbuild Down Take Pipes efficiently carry rainwater from roof gutters to drainage systems or storage tanks. Their optimized profile reduces splashing and supports effective rainwater management.
Engineered for Performance
Ridge Cap
Ridge Caps provide complete protection at roof intersections by covering the ridge and overlapping the adjoining roofing sheets, helping prevent water ingress while maintaining a clean architectural finish.
Engineered for Performance
Gutter System
Steelbuild Gutters are engineered for efficient collection and drainage of rainwater from industrial roofing systems, protecting building facades and supporting long-term structural durability.
Engineered for Performance
Manufacturing Gallery
Inside Steelbuild Manufacturing
Explore our manufacturing infrastructure, advanced machinery, fabrication processes and quality-focused production environment.
Precision Manufacturing • Quality Control • Reliable Delivery

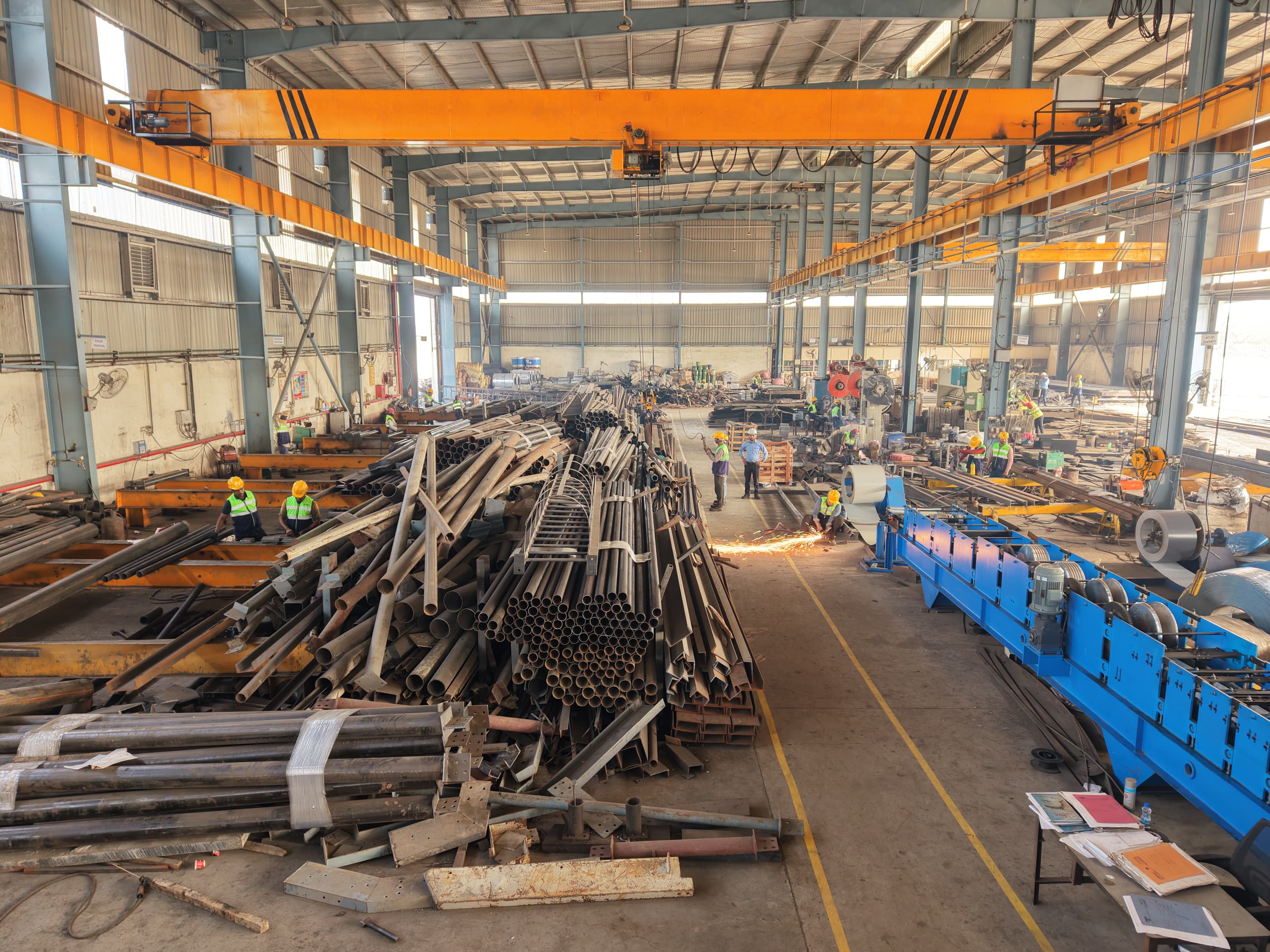

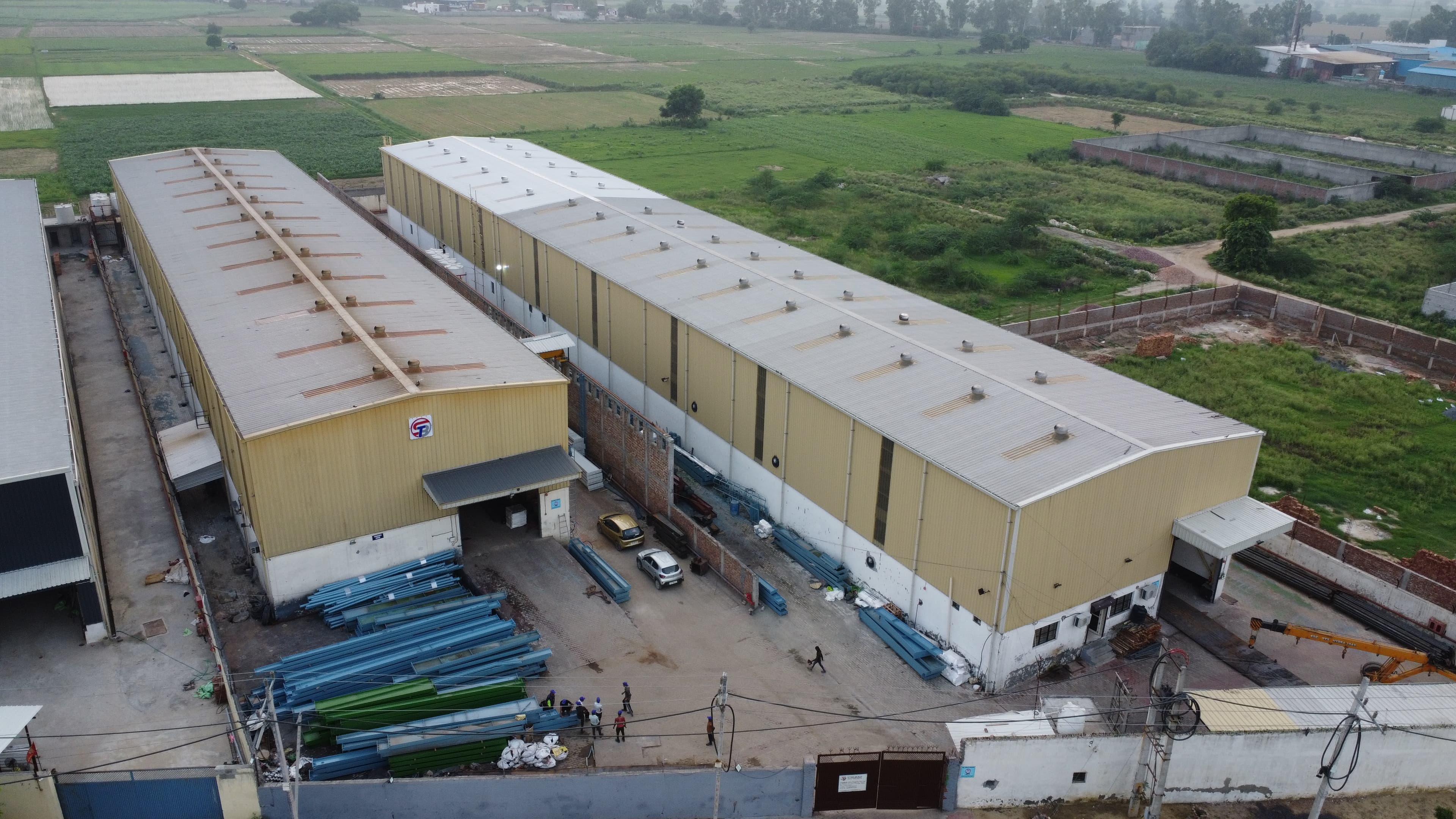

Manufacturing Facilities
Built for Scale, Precision and Reliable Delivery
Steelbuild operates three integrated manufacturing units in Sonipat, Haryana, supporting structural fabrication, roofing, cladding, secondary members and complete PEB production.
50,000 MT
Annual Manufacturing Capacity
3 Units
Integrated Manufacturing Facilities
ISO 9001:2015
Certified Quality Management
Strict QA/QC
Multi-Stage Quality Inspection
Unit 01Manufacturing Unit 1
Facility Strength
Heavy Structural Fabrication Hub
Steelbuild Manufacturing

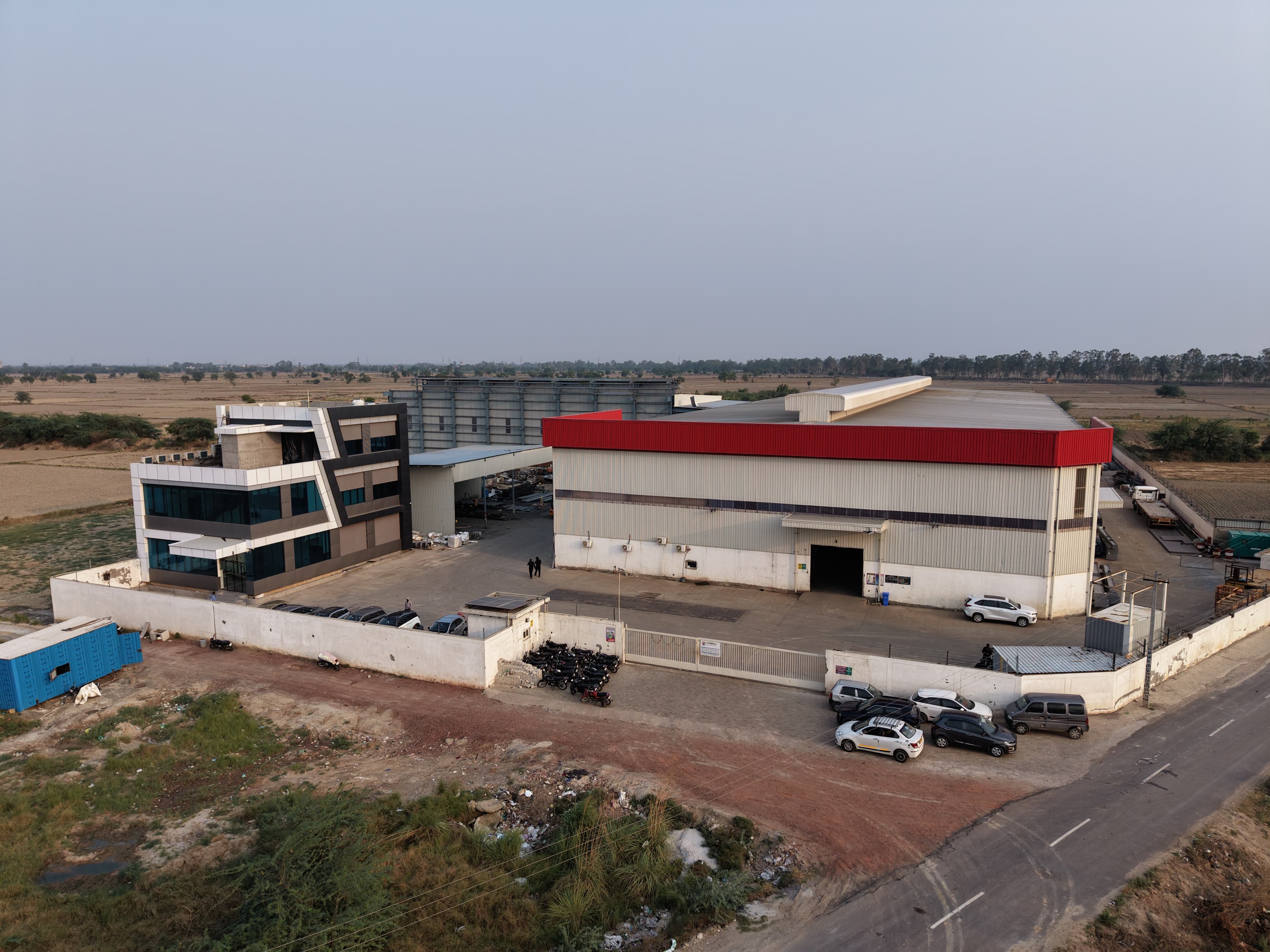

Katwal Manufacturing Facility
Our Katwal facility supports heavy structural fabrication, primary framing production and precision manufacturing for large-scale Pre-Engineered Building projects.
Khewat No. 168, Khasra No. 20//19, 22, 23/1, 36//2/1, Khata No. 172, Village Katwal, Tehsil Gohana, Sonipat, Haryana – 131409
View Facility on Google MapsFacility Capabilities
01
Heavy Structural Steel Fabrication
Precision fabrication of primary framing members and heavy structural steel components.
02
Primary Framing Production
Production of columns, rafters and critical load-bearing PEB members.
03
Automated Cutting & Welding
Advanced CNC cutting and high-capacity welding systems for consistent production quality.
04
Dedicated QA/QC Inspection
Multi-stage quality inspection for fabrication accuracy, finish and compliance.
Unit 02 & 03Manufacturing Unit 2 & 3
Facility Strength
High-Volume PEB Production Hub
Steelbuild Manufacturing
Halalpur Manufacturing Facilities
Our Halalpur facilities are designed for high-volume PEB manufacturing, roofing, cladding, secondary members, packing and organized project dispatch.
Khasra No. 75/21/2, 21/3, 22/2, 22/3, Village Halalpur, Sonipat, Haryana – 131103
View Facility on Google MapsFacility Capabilities
01
High-Volume PEB Manufacturing
Scalable production infrastructure for large-volume industrial building components.
02
Roofing & Cladding Systems
Manufacturing support for roofing, cladding and standing seam roll-forming systems.
03
Secondary Member Production
Production of purlins, girts, eave struts and other secondary framing components.
04
Packing & Dispatch Infrastructure
Organized storage, packing and dispatch systems supporting timely project delivery.
Manufacturing FAQs
Frequently Asked Questions
Learn more about Steelbuild's manufacturing capabilities, quality systems, machinery and project delivery process.
Steelbuild Infra Projects operates three integrated manufacturing units with a combined annual capacity of approximately 50,000 MT for Pre-Engineered Buildings and structural steel systems.
Manufacturing Excellence
Ready to Manufacture Your Next Pre-Engineered Building?
Partner with Steelbuild for precision-engineered structural fabrication, roofing, cladding and complete manufacturing support backed by advanced machinery and strict quality control.
50,000 MT
Annual Capacity
3 Units
Manufacturing Facilities
ISO 9001:2015
Certified Systems
Pan India
Project Delivery
Integrated Capability
Complete Manufacturing Support
01
Heavy Fabrication
02
Roofing & Cladding
03
CNC Cutting & Welding
04
Secondary Members
05
Quality Assurance
06
Packing & Dispatch
Precision manufacturing supported by certified quality systems and multi-stage inspection.
High-Capacity Production
Strict Quality Control
Reliable Pan-India Delivery
